low price 4-20 inch large flow agricultural irrigation diesel water pump

FOB Reference Price:Get Latest Price
$1,500.00 - $5,608.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Sump Pumps SEWAGE PUMPS Effluent Pumps Grinder Pumps Dewatering Pumps Trash Pumps Self-Priming Sewage & Trash Pumps Centrifugal Pumps Booster Pumps WELL PUMPS Circulating Pumps diesel water pump 40hp water pump agricultural irrigation diesel water pump
Horsepower:
40hp 60hp 100hp 150hp 180hp 200hp 250hp 300hp more
Maximum Flow Rate:
6000m/3h
Maximum Head:
5-125m
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 Negotiable
Customization:
customized (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shijiazhuang
Brand Name:
datoo
Model Number:
agricultural irrigation diesel water pump
Structure:
Single-stage Pump
Usage:
Water,mud,slurry...
Application:
water supply,irrigation,dredge,irrigation
Power:
Electric,Diesel engines
Fuel:
Diesel
Pressure:
Low Pressure
Theory:
Centrifugal Pump
Product name:
irrigation diesel water pump
Diesel engine brand:
weichai,shangchai,deutz and so on
Material:
Cast Steel,chrome alloy,iron...
Pump Type:
Double Suction Centrifugal Water Pump
Seal:
packing seal,mechanical seal
Head:
5-125m
Flow:
3-20000m3/h
Engine type:
Water Cooler
Feature:
High Efficiency
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood diesel irrigation pump with cummings engine
Port
all china
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Description

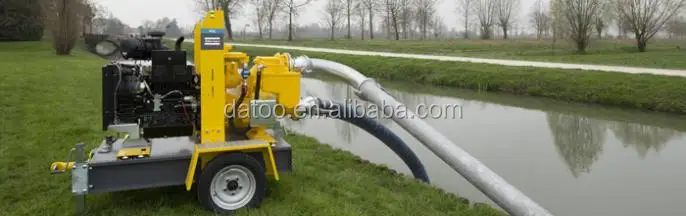

Trailer type diesel water pump

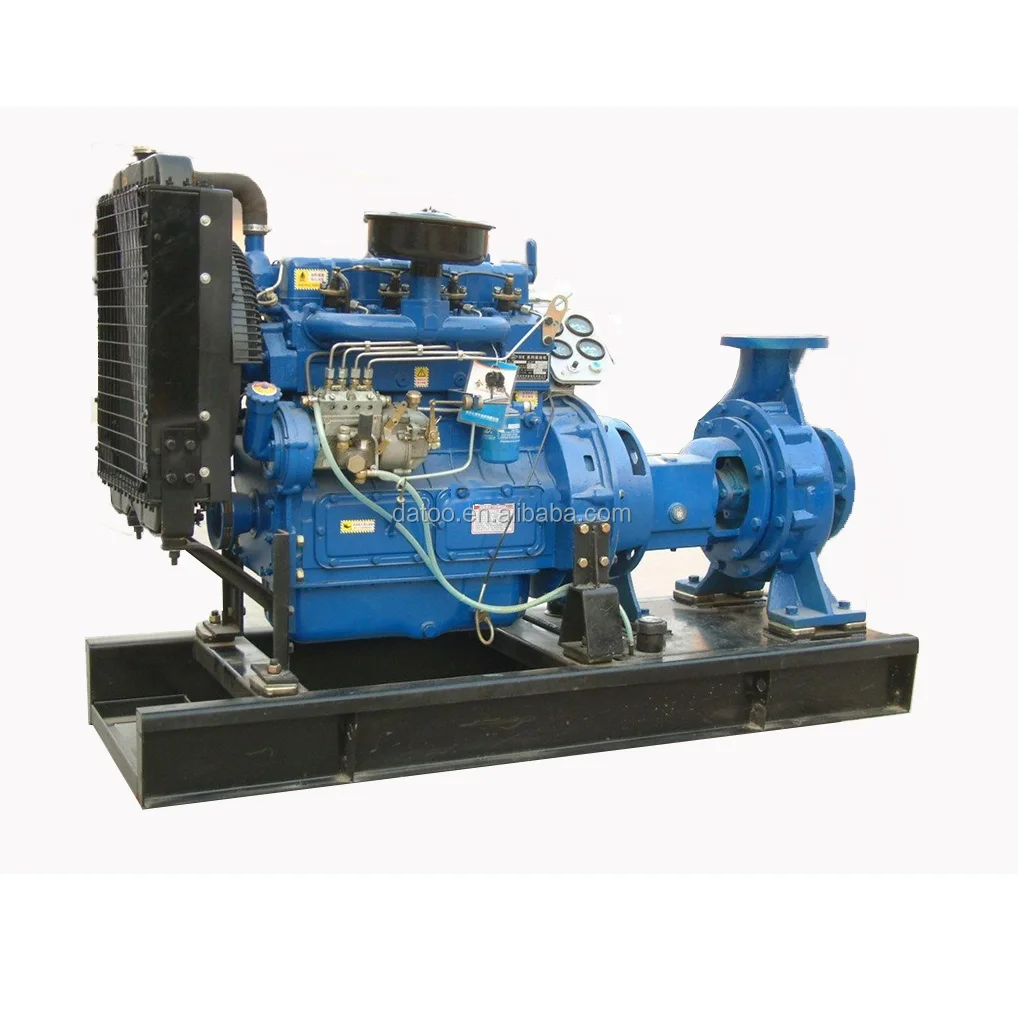

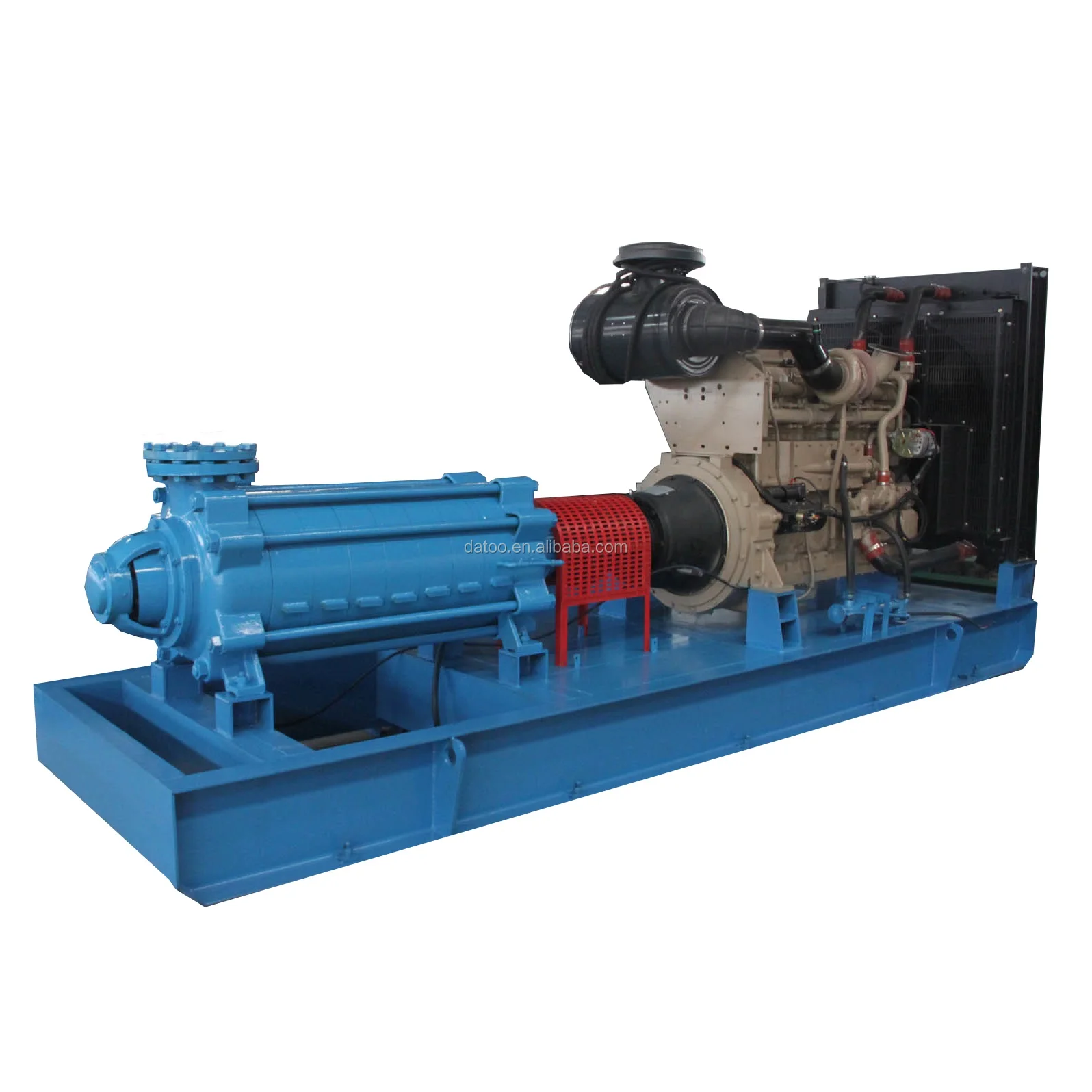

Diesel engine driven water pump with frame

Specifications

1.On Time Delivery
2.Matrial:Original spare parts

3.large stock for common parts

4.professional engine parts sales engineer to guarantee the accuracy of the parts
5.Professional Perfomance Auto & Construction Machinery parts supplier
6.Diesel Engines for Wechai Shangchai (SDEC)  Yuchai Deutz

Datasheet


Diesel engine with water pump datasheet

Item
Water Pump Set Model
Capacity
(m3/h)
Headlift
(m)
Rated power
(kw)
Standby power
(kw)
Rated speed
RPM
Diesel engne Model
Engine Brand
1
HS125-80-350B
135
29
18
20
1500/1800
WP2.1D18E2
Cummins

Weichai

Deutz

Ricardo Yangdong

Shanghai diesel engine
2
HS150-100-300A
230
28
23
25
1500/1800
WP2.3D25E200
3
HS150-100-400B
192
38
30
33
1500/1800
WP2.3D33E200
4
HS200-125-385B
347
29
36
40
1500/1800
WP2.3D40E200
5
HS200-125-480B
244
43
44
48
1500/1800
WP2.3D48E200
6
HS200-150-350B
561
28
60
66
1500/1800
WP4D66E200
7
HS250-200-350B
887
19
74
81
1500/1800
WP4D81E200
8
HS250-200-350A
959
21
88
100
1500/1800
WP4.1D100E200
9
HS250-200-400A
795
26
98
108
1500/1800
WP4D108E200
10
HS250-200-400B
882
38
120
132
1500/1800
WP6D132E200
11
HS250-200-550A
810
40
138
152
1500/1800
WP6D152E200
12
HS300-250-475A3
1275
37
182
200
1500/1800
WP10D200E200
13
HS250-200-650B
704
76
216
238
1500/1800
WP10D238E200
14
HS300-250-475A2
1479
43
240
264
1500/1800
WP10D264E200
15
HS300-250-600A
1387
52
291
320
1500/1800
WP10D320E200
16
HS400-300-450A
2340
40
350
385
1500/1800
WP13D385E200
17
HS500-400-700A
2257
46
368
405
1500/1800
WP13D405E200
What information I need to offer for quotation? More details type please contact us!!!

Pump Capacity___m3/h Pump Head: ___m PH:_____

Liquid:___ Frequency ___Hz(for motor driven)

Specific of gravity___ Voltage ___V
Performance Range
Inlet diameter
125~1600 mm
Outlet diameter
80~1400 mm
Capacity
≤ 30000 m3/h
Head
≤ 200 m
Working temperature
< 105 ℃
Solid particles
≤ 80mg/L
Permitted working pressure
≤ 2.5 MPa
Permitted testing pressure
≤ 3.75 Mpa

Structure type:

HS(V)type series pump is new generation single stage double suction split casing centrifugal pump that is designed and produced by foreign advanced manufacturing technology .
Application Area
HS(V) type series pump is mainly used in water supply plants,power stations,industry water supply system,air conditioning circulation water,building water supply,irrigation,pump stations,and shipping industry.

Structural Characteristics

1,Compact structure
Nice appearance,good stability and easy installation.

2,Operate steadily
The double suction impeller which is optimum and designed by computer,and has a large inlet flowing area.The clapboard is set at packing box of inlet flow passage,it makes no vortex at inlet of pump.It adopts resin sand moulding and high quality cast technology to make the inner surface of pump casing and the surface of impeller smoother than before.Through above measures,we make pump operate with no vortex,operate smoother and have remarkable erosion-resistant ability and high efficiency.

3,Bearing
Excellent bearing is used to assure the steady operation,low noise,long service life.Grease lubrication and closed structure is used.If thin oil lubrication structure is needed,a constant level oil cup shall be equipped.

4,Shaft seal
Mechanical seal or packing seal shall be used.These two kinds of seal are all installed in the removable packing box,which is convenient to assembly and maintenance.The packing gland of pump is removable and open,which assures enough room for maintenance and repair.

5,Impeller
The latest technology of Sanlian Company is adopted as well as the best hydraulic model,which makes the double suction impeller can balance the axial force automatically.

6,Shaft
Shaft is completely sealed without contacting the medium or corrosion.The length of the shaft is shortened compared with that of S,SH type pumps,and it is hard with no vibration.A replaceable shaft sleeve is installed on the shaft.There is no thread on the shaft,and o-ring structure is adopted to assure shaft and bearing do not contact the medium to improve the service life.It is easy to assemble without adjustment.Pump rotor part shall be installed with elastic prestressing force,which makes the installation and disassembly much easier and more convenient.

7,Casing
For the pump of high head,double split casing passage is adopted,which counteracts most of the radial force and prolongs the life of bearing on two sides.

According to the different mediums and using requirements,main parts of the pump can adopt various materials.



Sectional drawing
Range Coverage Chat

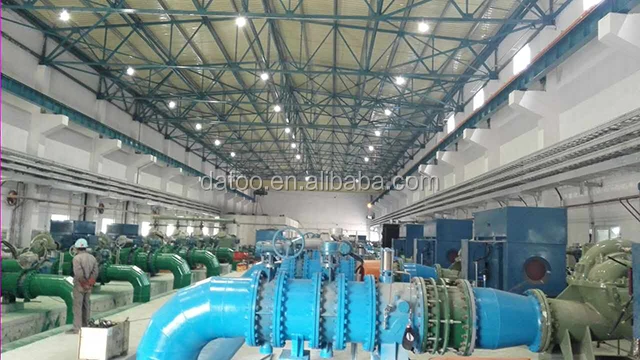

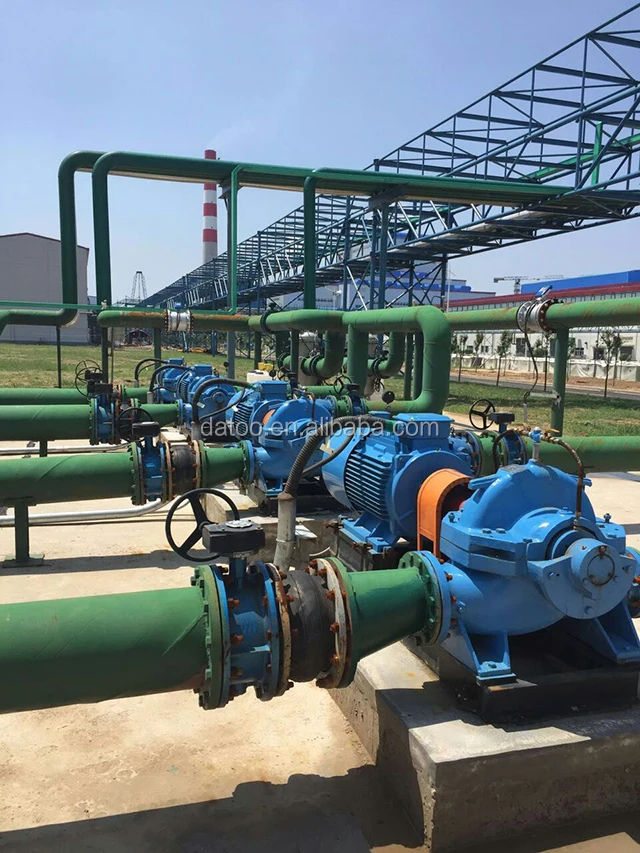

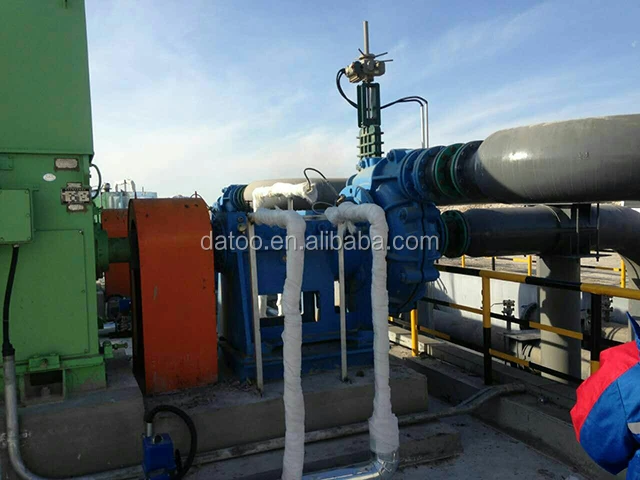

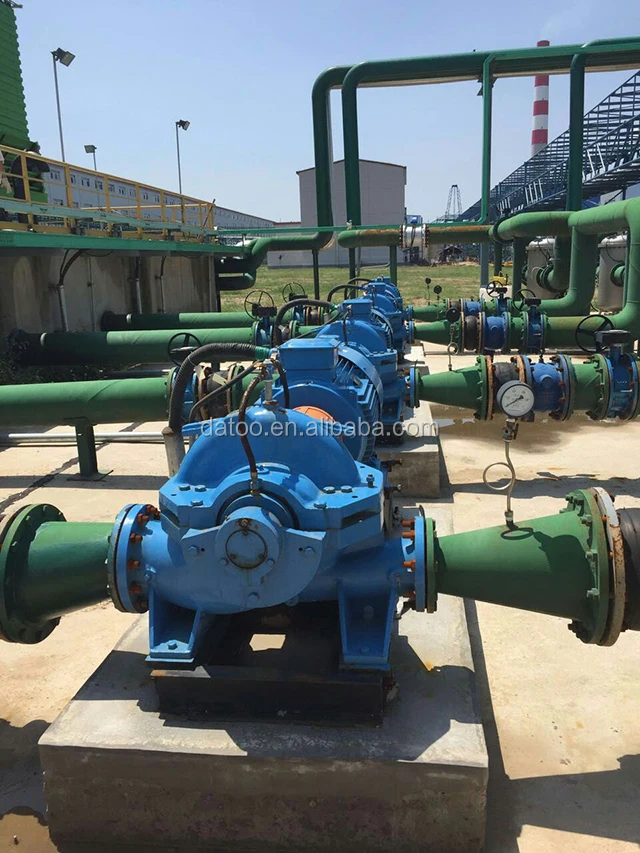

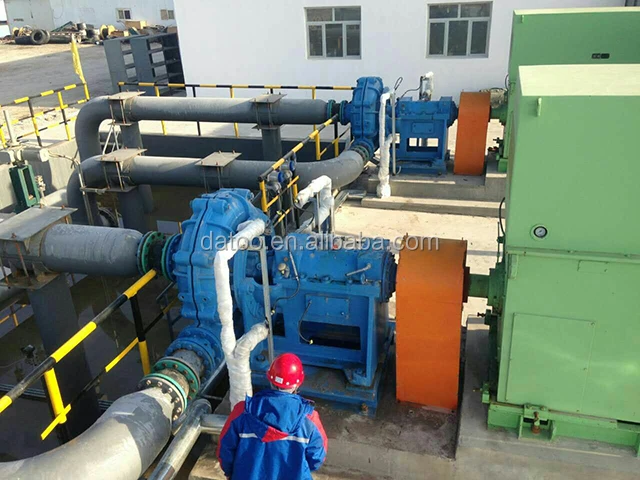

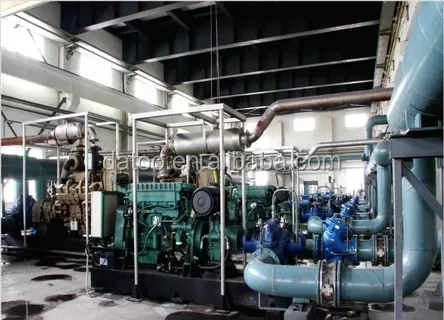

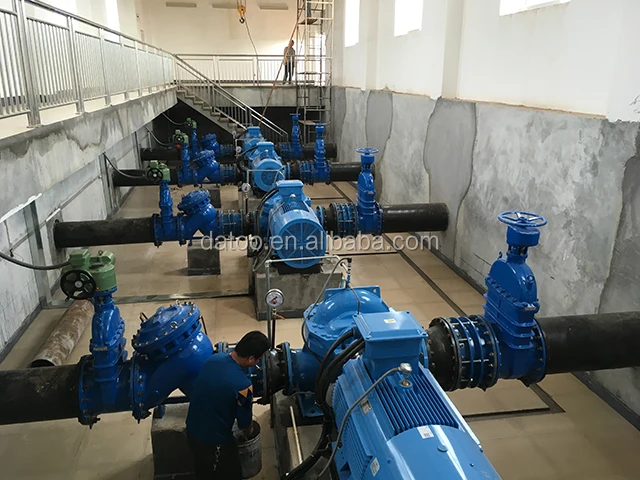

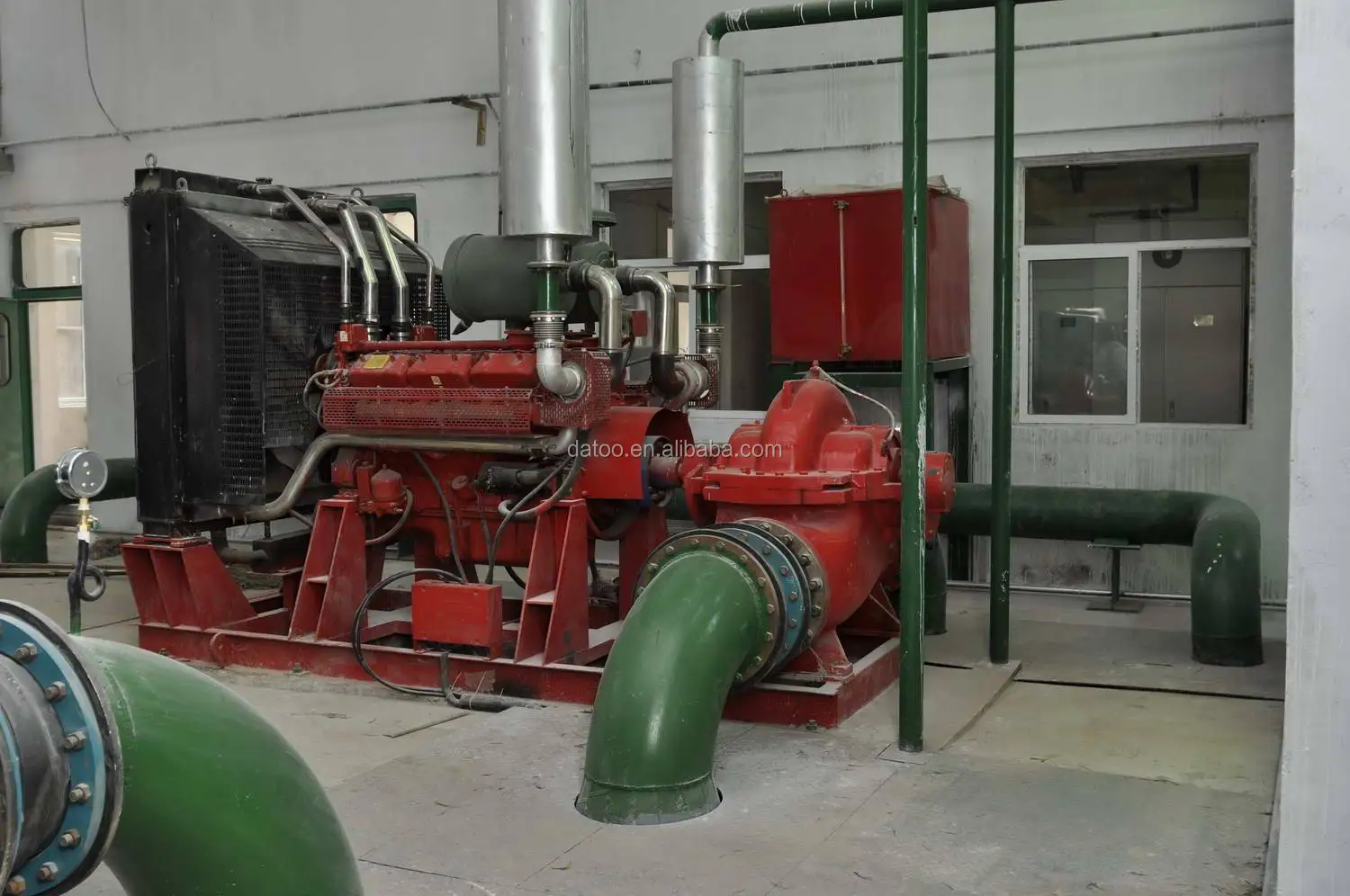

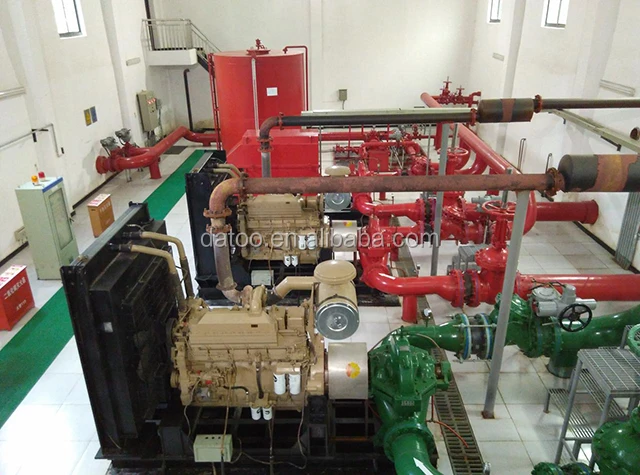

Product & Case
